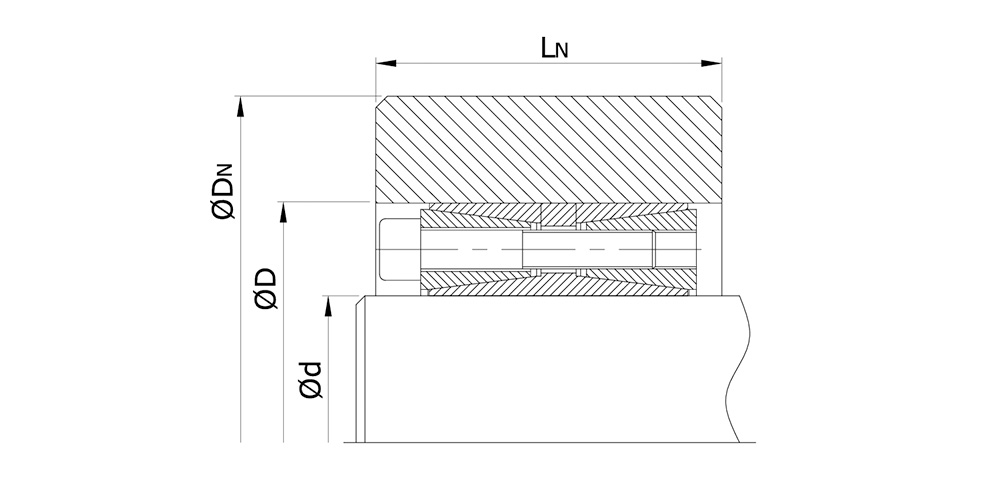

Keyless Locking Assemblies N7015.1

This series is available in inch size

Features

  • N7015.1 – Model similar to N7015.0, But in addition with highly low surface pressure.
  • Five Part Locking Assembly with Double Tapper Design
  • High Torque transmission capacity
  • Very High Bending Moment Capacity
  • No axial displacement of hub during installation
  • Self-centring

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
