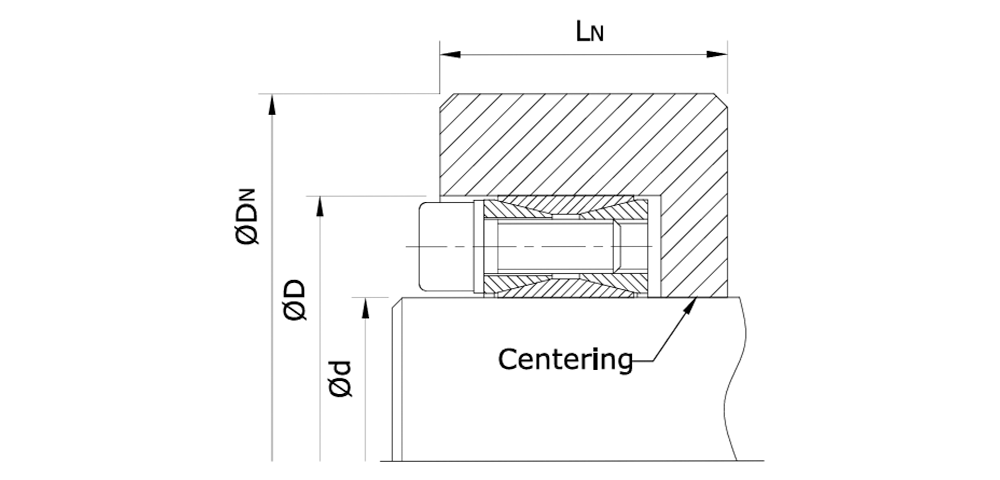

Keyless Locking Assemblies for Bending Loads N7012

Specifications

  • Easy To Detach
  • Compact Design
This series is available in inch size Shaft Diameter range: 100 mm to 480 mm

Features

  • Four part locking assembly with double taper design
  • Slimmest design for limited spaces as well as maximum forces and moments
  • Medium Torque transmission capacity
  • Medium Bending moment capacity
  • No axial displacement of hub during installation
  • Not self-centring
  • Self-releasing
  • Easy Mounting & Removal
  • Economically beneficial for conveyor application

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h11 & for Hub bore is H11.
