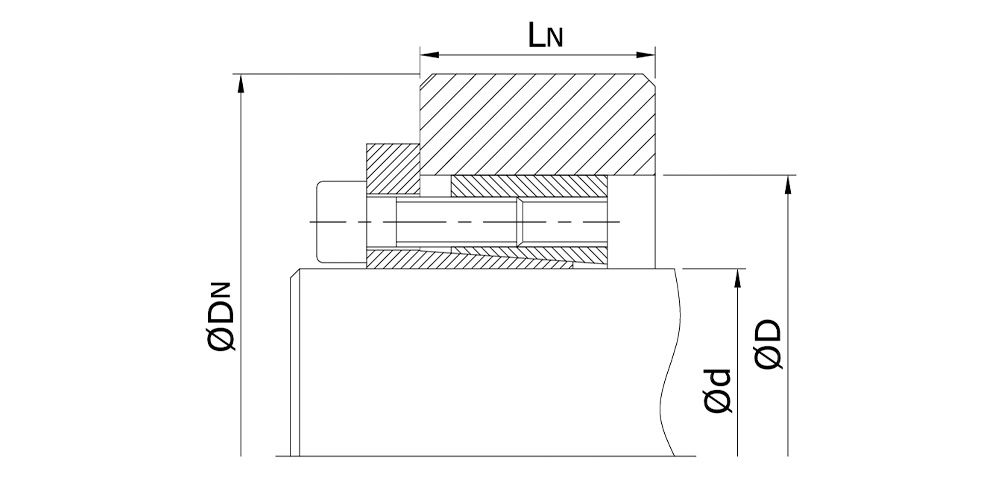

Keyless Locking Assemblies for Bending Loads N7033C

Specifications

  • Two Part Model With Slotted Single Taper Design As Well As With Flange
This series is available in inch size Shaft Diameter range: 100 mm to 420 mm

Features

  • Two Part Model with Slotted Single taper design as well as with Flange
  • No axial displacement of hub during installation
  • self-centring
  • Medium bending moment capacity
  • Medium - High bending moment capacity
  • Easy Mounting & Removal

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
