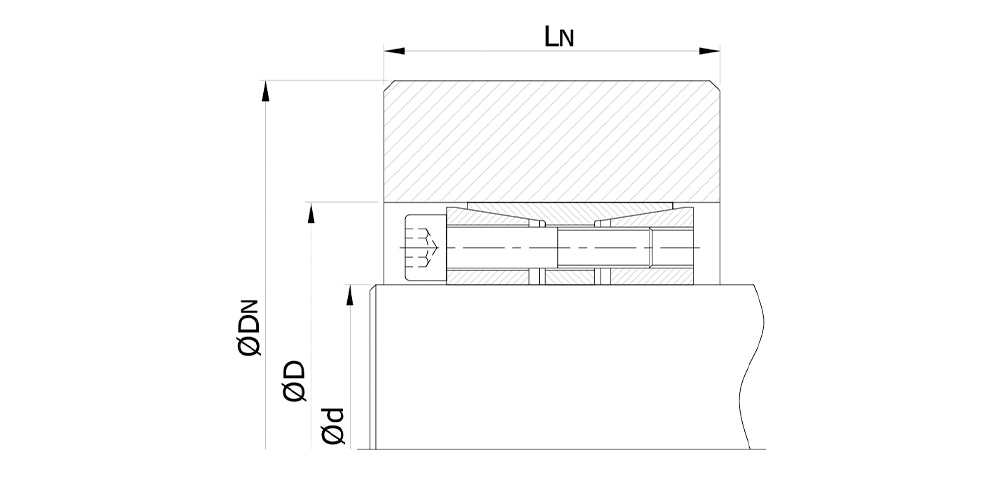

Keyless Locking Assemblies for Bending Loads N7515

Specifications

  • Three Part Design
  • Good Capacity To Withstand Bending Moments
This series is available in inch size Shaft Diameter range: 60 mm to 500 mm

Features

  • Three Part assembly with single tapper design
  • Good Capacity to withstand bending moments
  • Pre Centring Guide design.
  • High Torque transmission capacity
  • No axial displacement of hub during installation
  • Self-centring, Self-Locking

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
