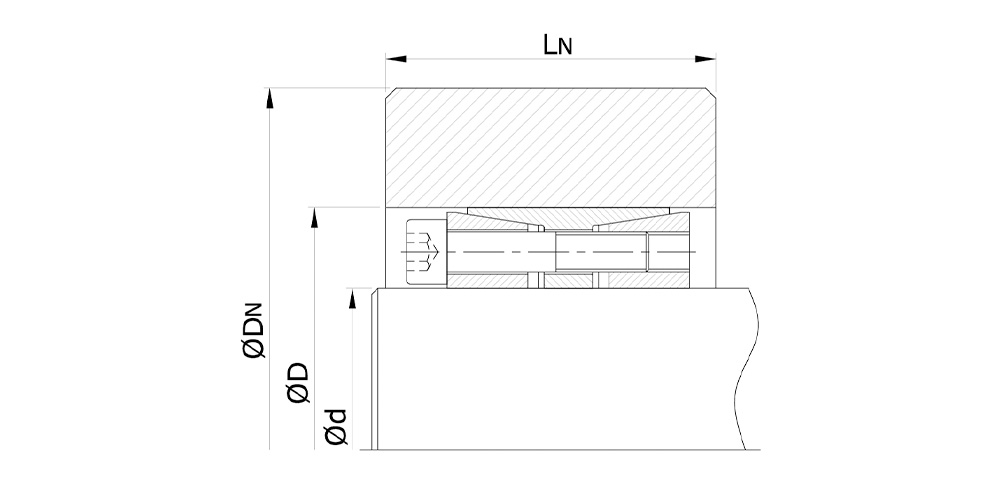

Keyless Locking Assemblies for Bending Loads N7515 ZZ Light

Specifications

  • Centres The Hub To The Shaft For Application With Low Contact Pressure
This series is available in inch size Shaft Diameter range: 60 mm to 500 mm

Features

  • Three Part assembly with single tapper design
  • For Applications with low contact pressure
  • Medium - High Bending Moment Capacity
  • Premium Quality with Zig-Zag Slit Type
  • Dual Slotted for higher centring accuracy
  • Pre Centring Guide design & Centres the hub to the shaft
  • Medium - High Torque transmission capacity
  • No axial displacement of hub during installation
  • Self-centring, Self-Locking

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
