This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 250 mm.
Nom. Transmitting torque: 287500 Nm.
Features

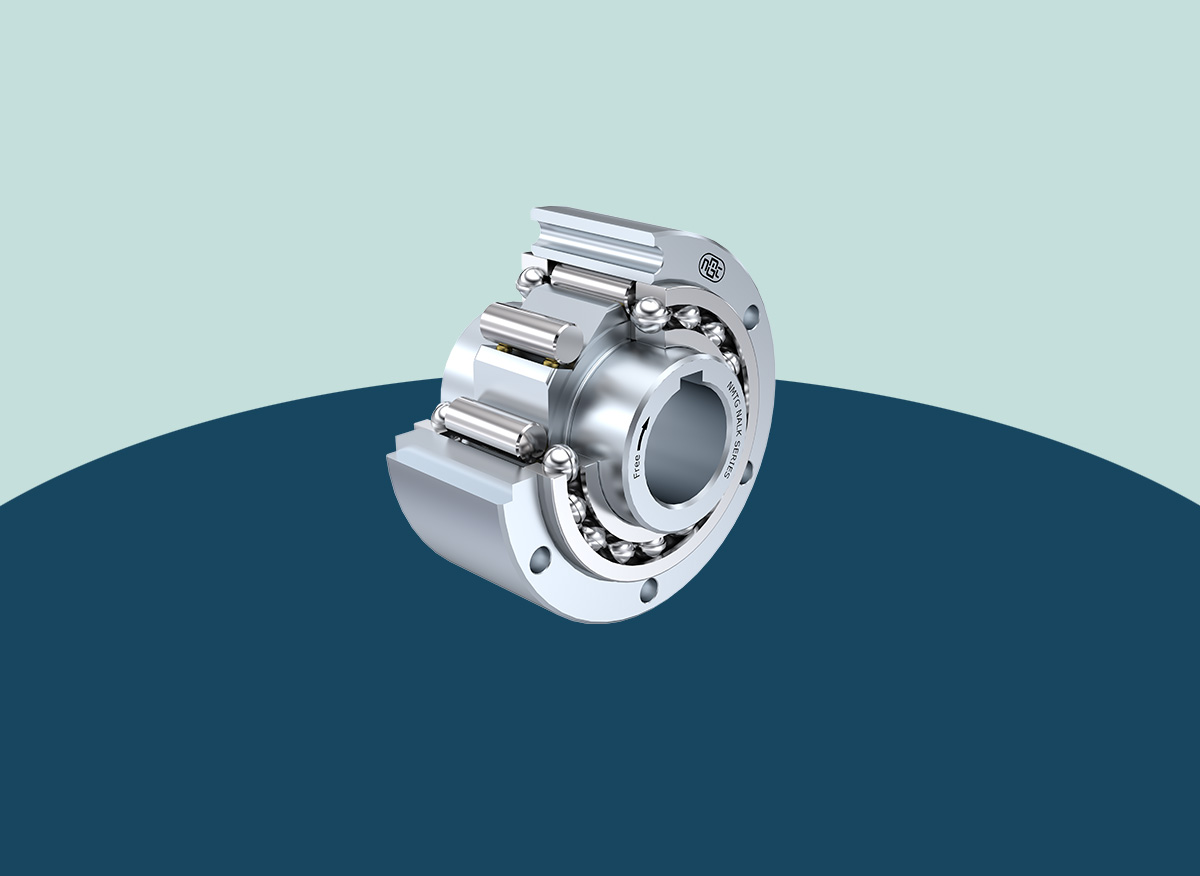

Trapped rollers Freewheels NALK is Self-centring by means of pairs of ball bearing supported.
Requires Oil/Grease lubrication.
This model is open design so sealing must be provided for the installation.
Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6.
NALK model has keyway on the outer side diameter to transmit torque.
This model is also supplied with F series covers that are designed to transmit torque, provide oil lubrication & sealing. Generally these covers are used in pairs according to Combination.
