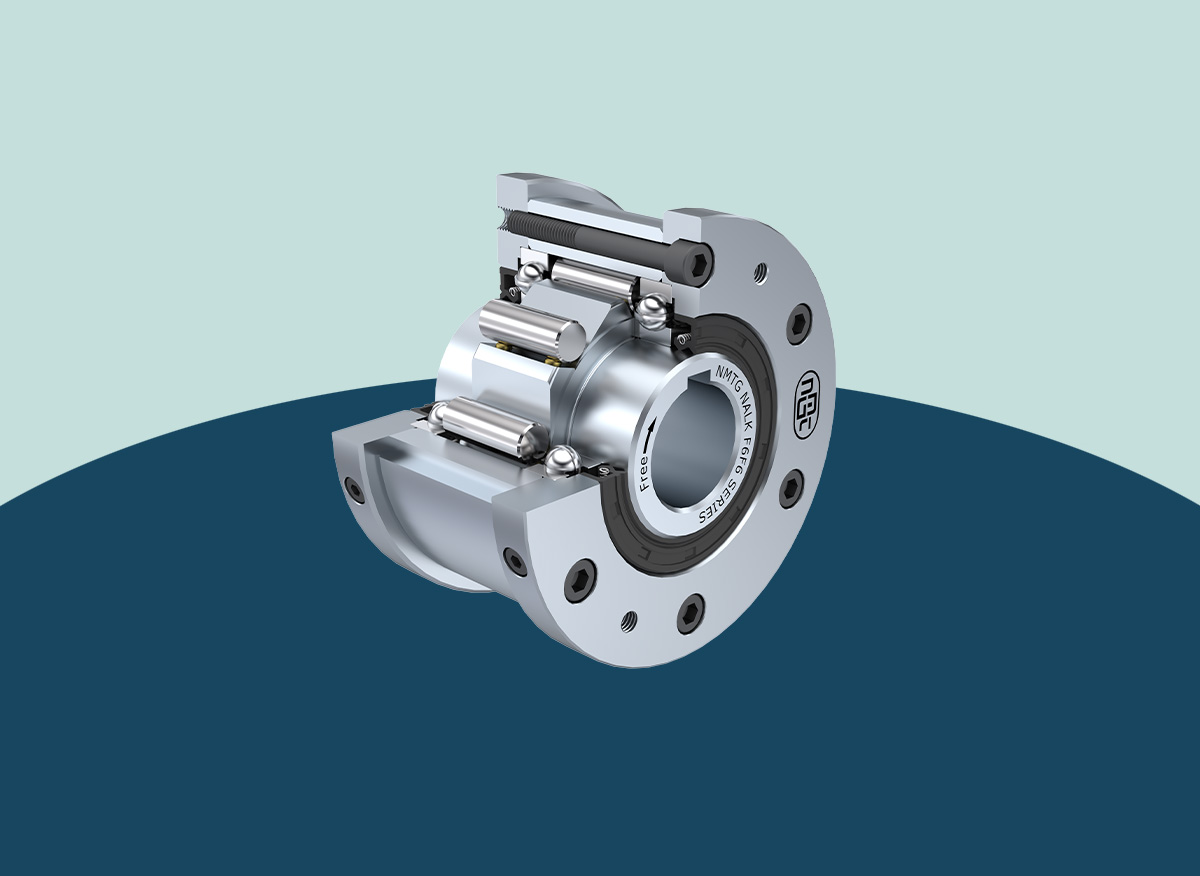

Roller Type Freewheel One Way Clutches NALK F6F6

Complete Freewheel one-way clutches

  • This Series is use as Overrunning, Backstopping, Indexing
  • Bore range: up to 250 mm.
  • Nom. Transmitting torque: 287500 Nm.

Features

  • Trapped rollers Freewheels NALK F6F7 model is Self-centring by means of V-Sealing & pairs of ball bearing supported.
  • Requires Oil/Grease lubrication.
  • Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6.
  • This model has keyway on the outer side diameter to transmit torque.
  • This models are also supplied with F6 & F7 flange covers which are act as close units.
