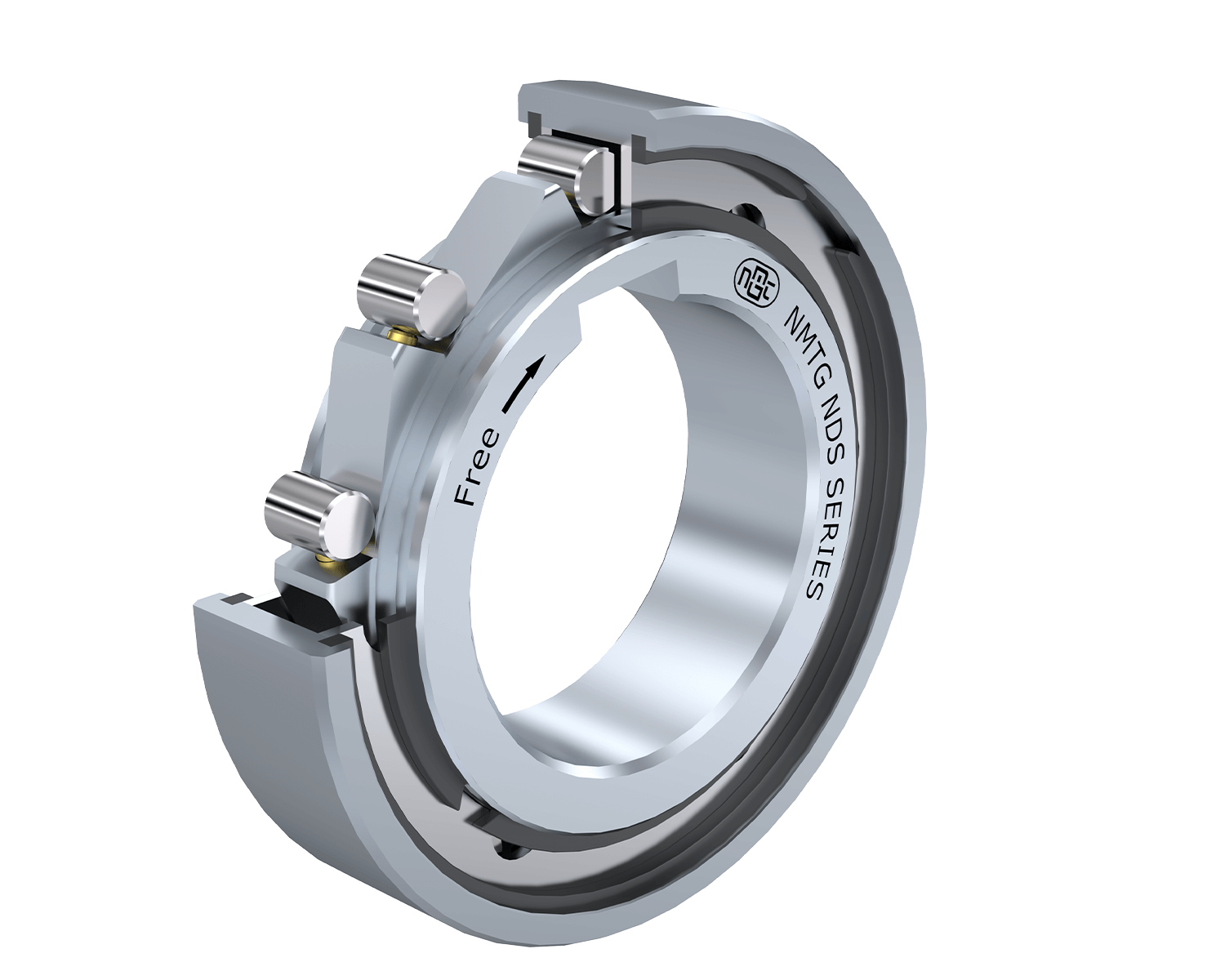

Roller Type Freewheel One Way Clutches NDS

Internal Freewheel one-way clutches

  • This Series is use as Overrunning & Backstopping
  • Bore range: up to 80 mm.
  • Nom. Transmitting torque: 1063 Nm.

Features

  • Trapped rollers Freewheels NLD model is non-bearing supported, so bearings are required to support axial & radial loads.
  • Lubrication & Sealing must be provided for Installation.
  • Inner race is keyed to shaft, expect 6mm bore.
  • Outer race has positive r6 Tolerance to give a press fit in H7 Housing. Outer Housing must be strong enough to not expand after assembly.
