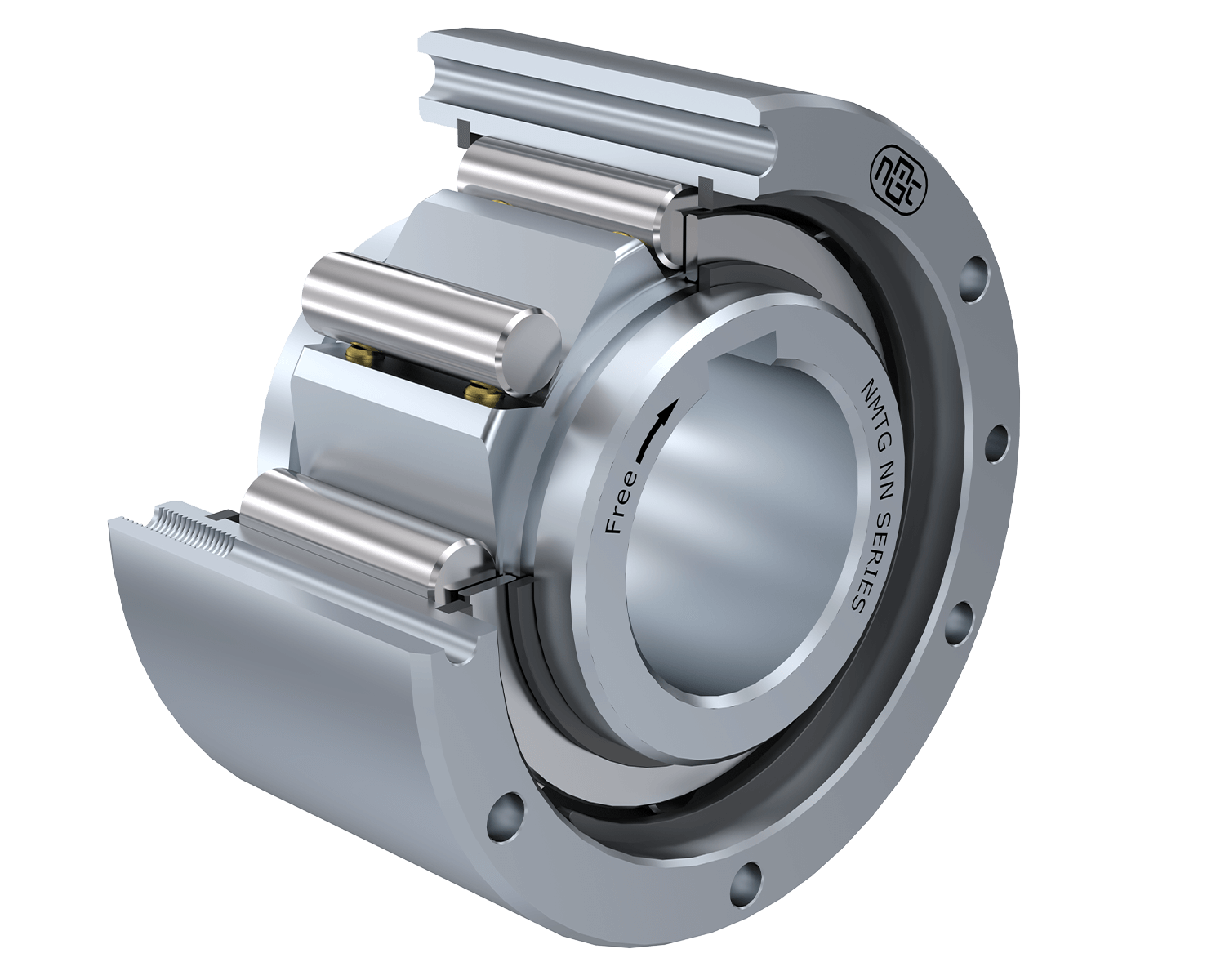

Roller Type Freewheel One Way Clutches NN

Internal Freewheel one-way clutches

  • This Series is use as Overrunning & Backstopping.
  • Bore range: up to 250 mm.
  • Nom. Transmitting torque: 225000 Nm.

Features

  • Trapped rollers Freewheels NN model is non-bearing supported, so bearings are required to support axial & radial loads.
  • Lubrication & Sealing must be provided for Installation.
  • Standard Lubrication is Oil.
  • Inner race is keyed to shaft & Outer race should be fitted in Housing with a H7 Tolerance.
  • Connection of Outer race is though Bolts of grade 10.9 or better.
