This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 150 mm.
Nom. Transmitting torque: 70000 Nm.
Features

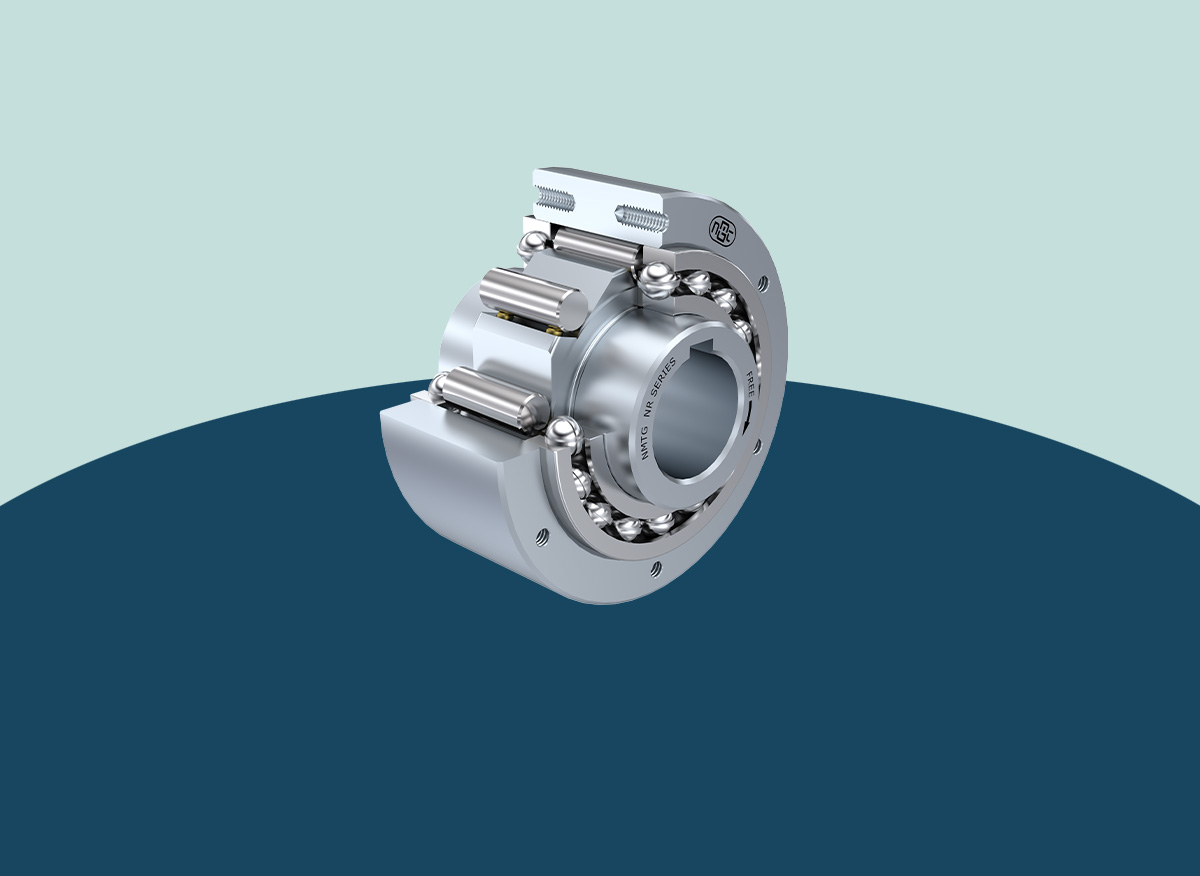

Trapped rollers freewheels NR model is self-centring by means of pairs of ball bearing supported.
Requires oil lubrication.
This model is open design so sealing must be provided for the installation.
Component mounted onto the outside diameter of outer race should be bored to h7 tolerance & shaft tolerance must be h6.
This model is also supplied with “C” series covers that are designed to transmit torque provide oil lubrication & sealing. Generally these covers are used in pairs according to combination.
