This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 250 mm.
Nom. Transmitting torque: 250000 Nm.
Features

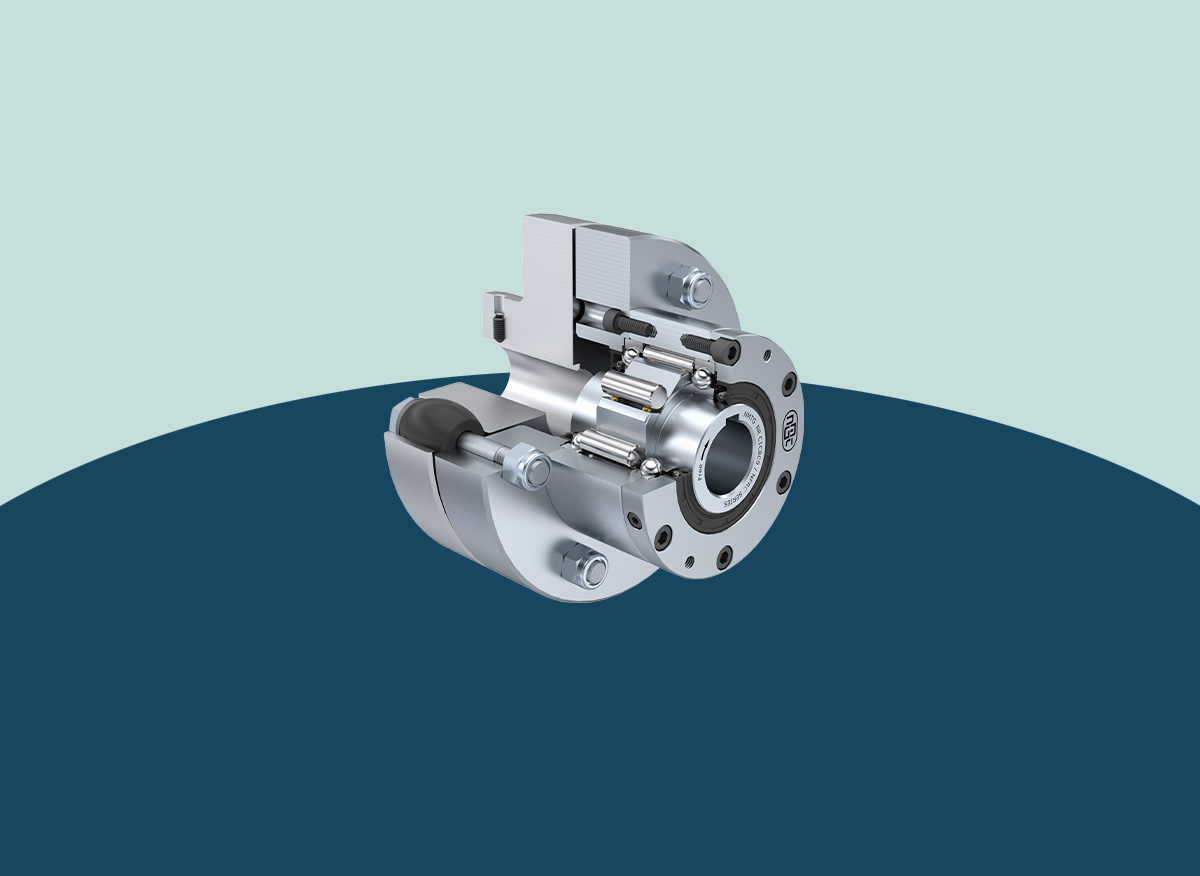

Trapped rollers Freewheels NR C1C8C9 is Self-cantered by means of V-Sealing & pairs of ball bearing supported so, unit is Self-sealed designed.
Requires Oil/Grease lubrication.
Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6.
C1 cover is used to close the unit.
This type of Combination is used as Overrunning. In this design, freewheel is connected to flexible Coupling (C9) for inline mounting. This type of Coupling is a high performance coupling used to damp torsional vibration & to accept misalignment without access bearing load.
