This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 150 mm.
Nom. Transmitting torque: 70000 Nm.
Features

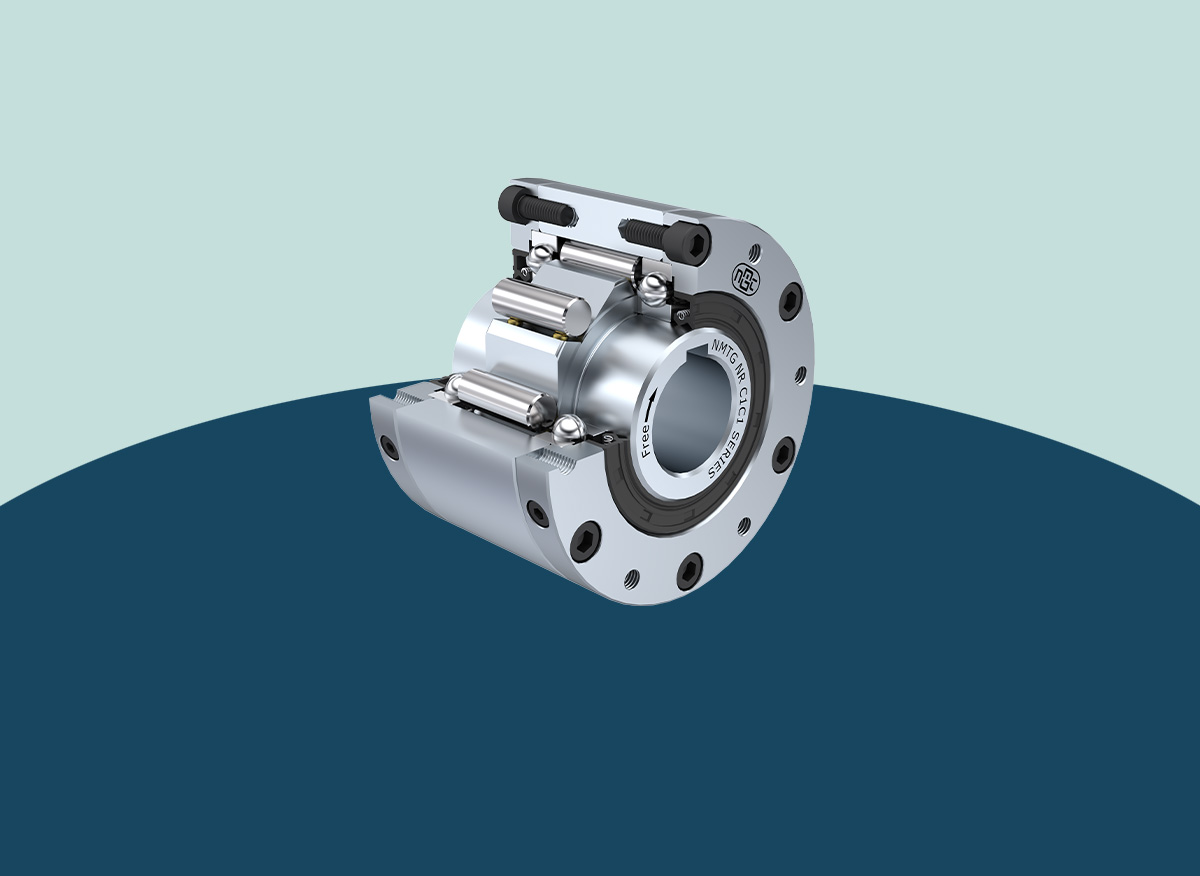

Trapped rollers Freewheel NR C1C1 model is Self-centred by means of Oil Sealing & pairs of ball bearing supported so, unit is Self-sealed designed.
Requires Oil/Grease lubrication.
Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6.
This type of Combination is used as Overrunning & Indexing, in which C1 covers are act as close unit.
End faces of C1 cover have Tapped Holes for attachment of items such as Coupling, Sprocket, Pulley, etc. with Outside diameter of outer race provided location to ensure Concentricity.
