This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 150 mm.
Nom. Transmitting torque: 70000 Nm.
Features

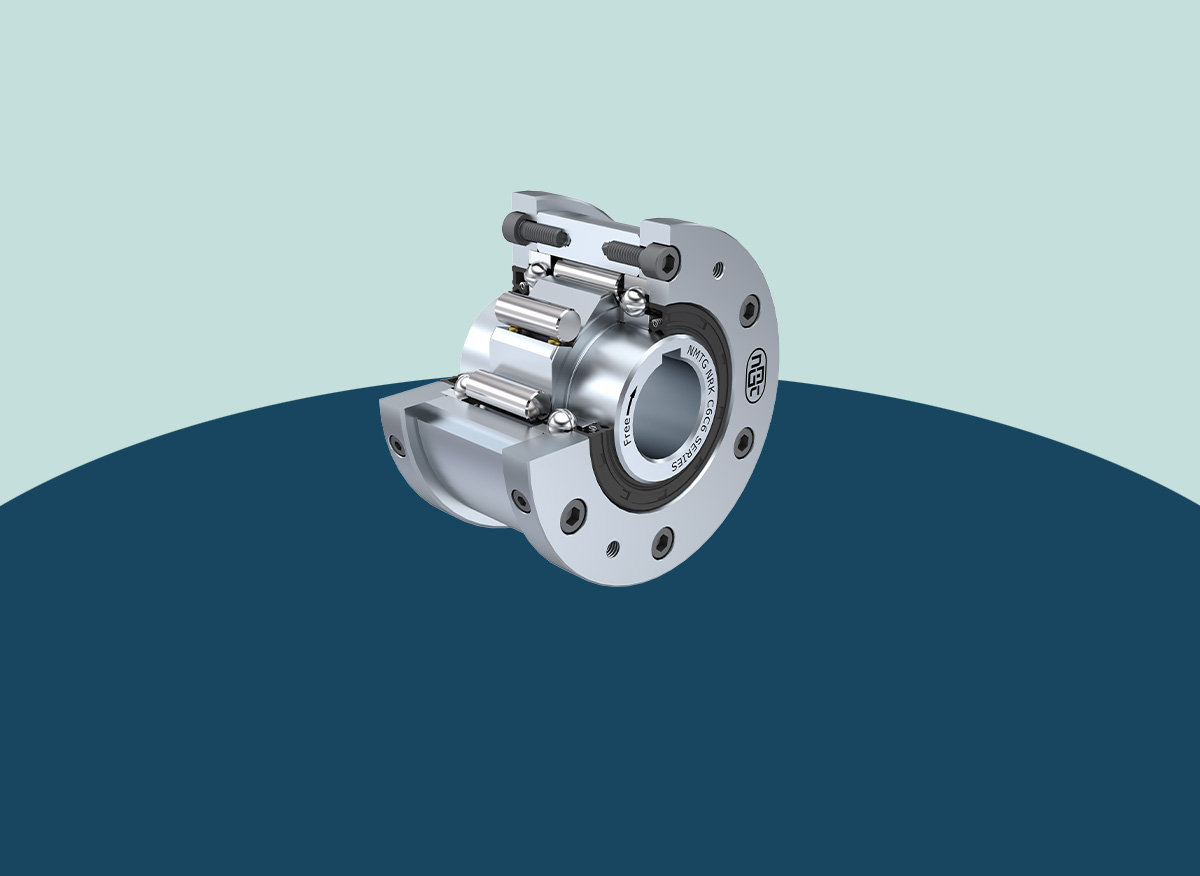

Trapped rollers Freewheels NR C1C4 & C1C5 models are Self centered by means of Oil Sealing & pairs of ball bearing supported So, unit is Self sealed designed.
Requires Oil lubrication.
Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6/j6.
This type of Combinations are used as Overrunning & Indexing, in which C1 covers are act as close unit, C4 covers as a flange type cover & C5 as a Spigot type flange cover.
