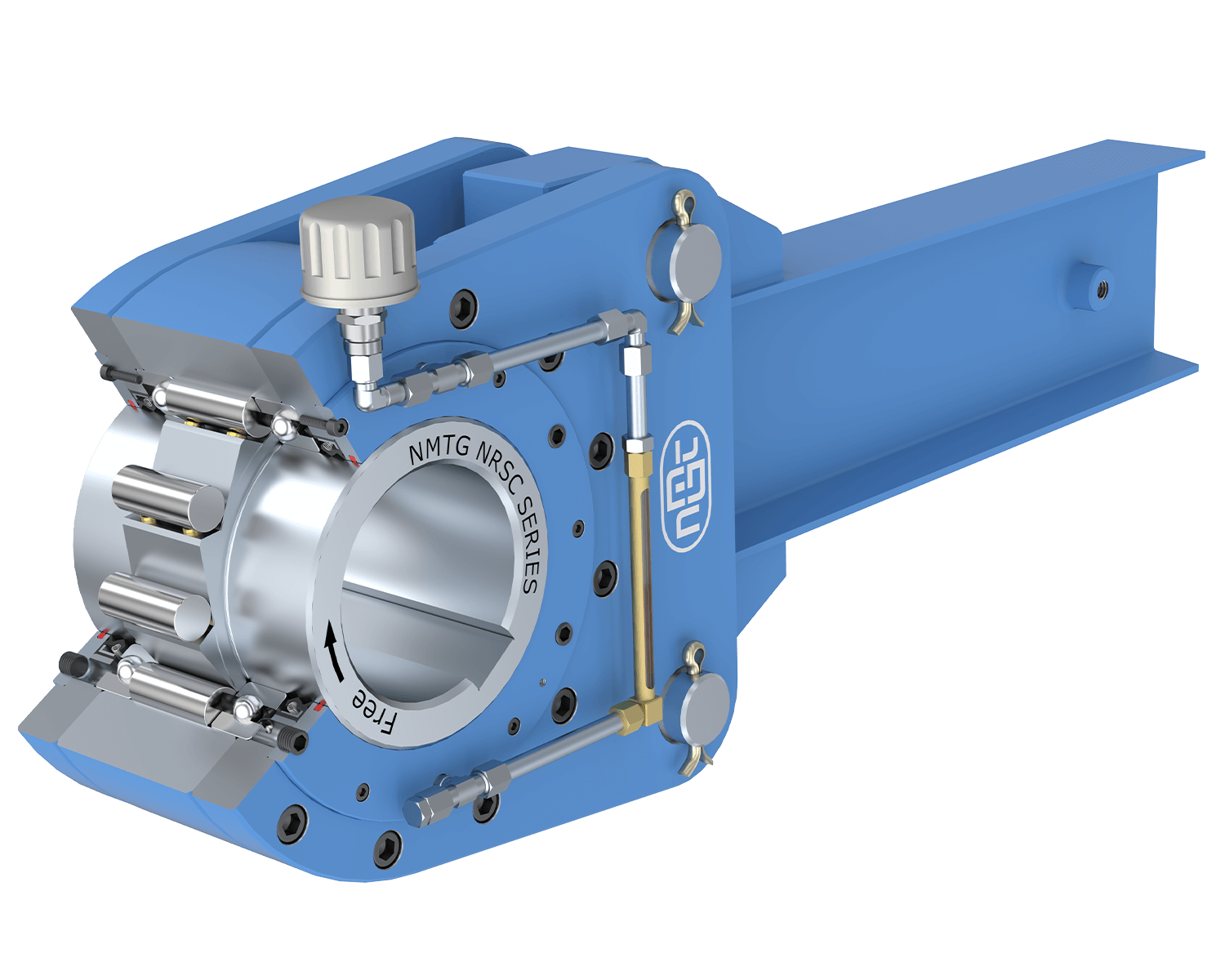

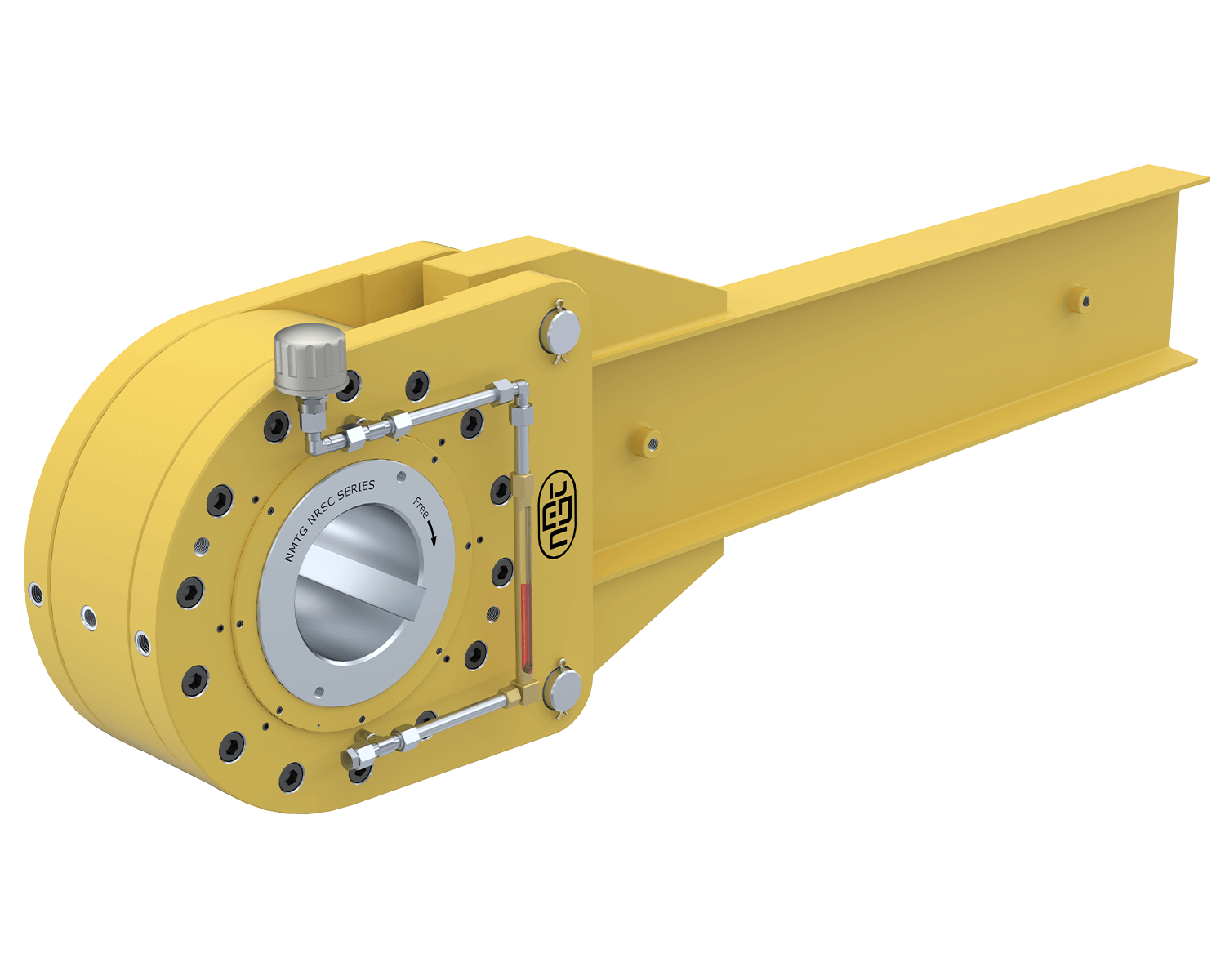

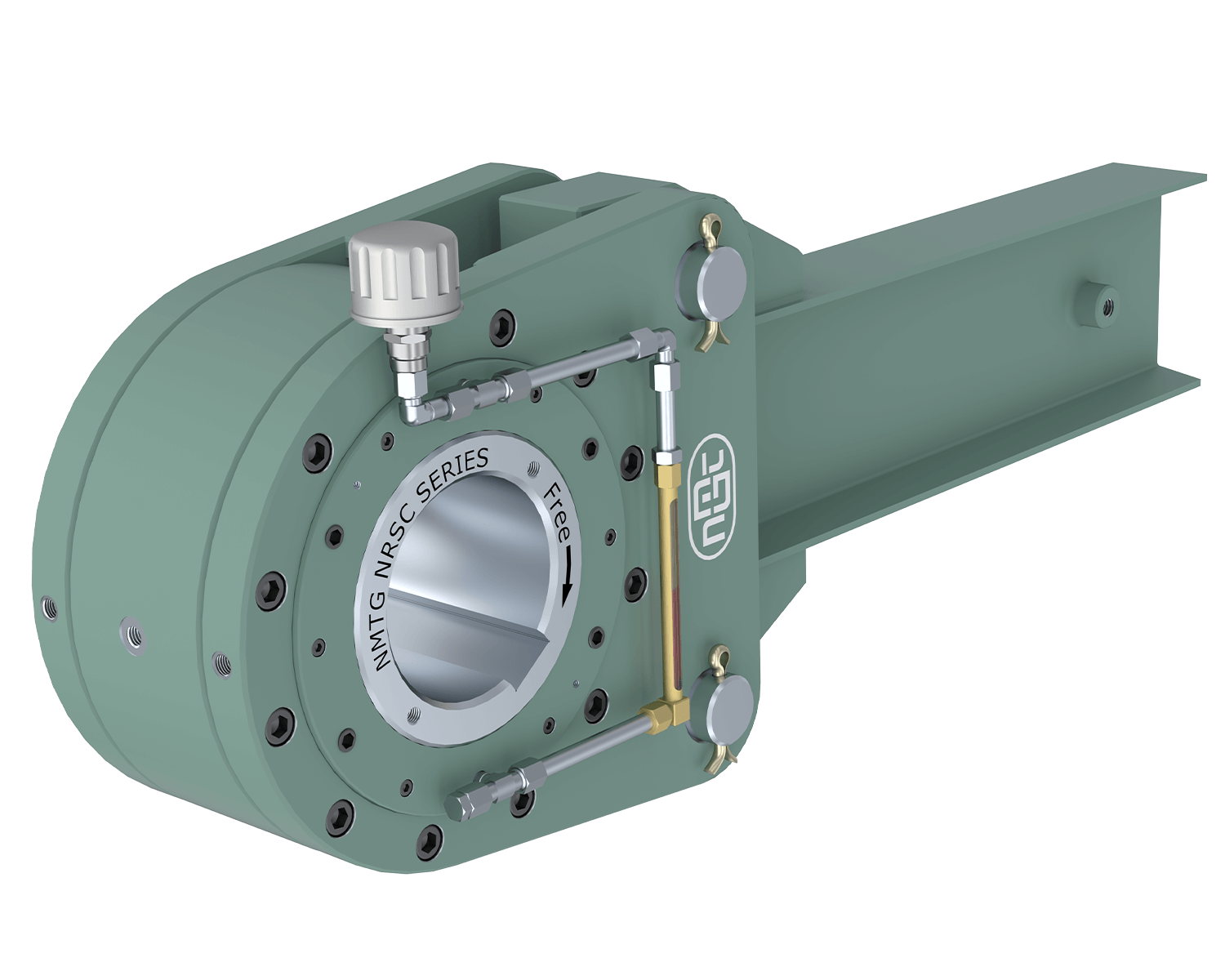

Roller Type Freewheel One Way Clutches NRSC

Low Speed External Holdbacks

  • This Series is use as Backstopping.
  • Bore range: up to 300 mm.
  • Nom. Transmitting torque:216600 Nm.

Features

  • This type of Freewheel Clutches are Supplied with Lever arm & Roller with Ball bearings support.
  • This type of Freewheel Clutches are designed for use in Low speed Inclined Conveyor, Elevator, etc.
  • Requires Oil/Grease Lubrication.
  • The back driving torque is supported by the Lever arm. The positioning of the lever arm can be adjusted at any angle. The lever arm must not be clamped into position. It must have 12.7 mm play in the axial and in the radial direction.
