This Series is use as Overrunning, Backstopping, Indexing
Bore range: up to 75 mm.
Nom. Transmitting torque: 3200 Nm.
Features

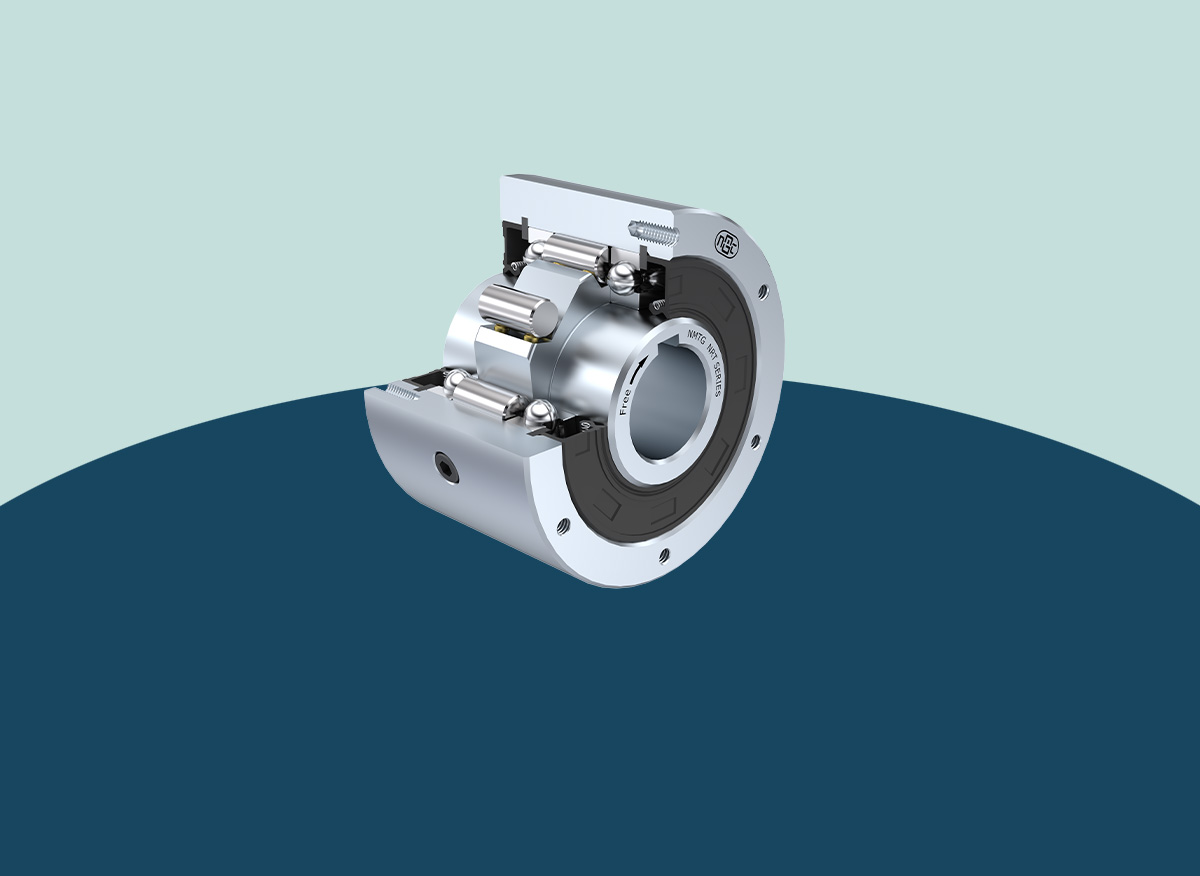

Trapped rollers Freewheels NRT model is Self-centred by means of Oil Sealing & pairs of ball bearing supported. So, unit is Self-sealed designed.
Requires Oil/Grease lubrication.
Outer race end faces have Tapped Holes for attachment of items such as Coupling, Sprocket, Pulley, etc. with Outside diameter of outer race provided location to ensure Concentricity.
Component mounted onto the outside diameter of Outer race should be bored to H7 tolerance & Shaft tolerance must be h6.
