Shrink Disc
N4071

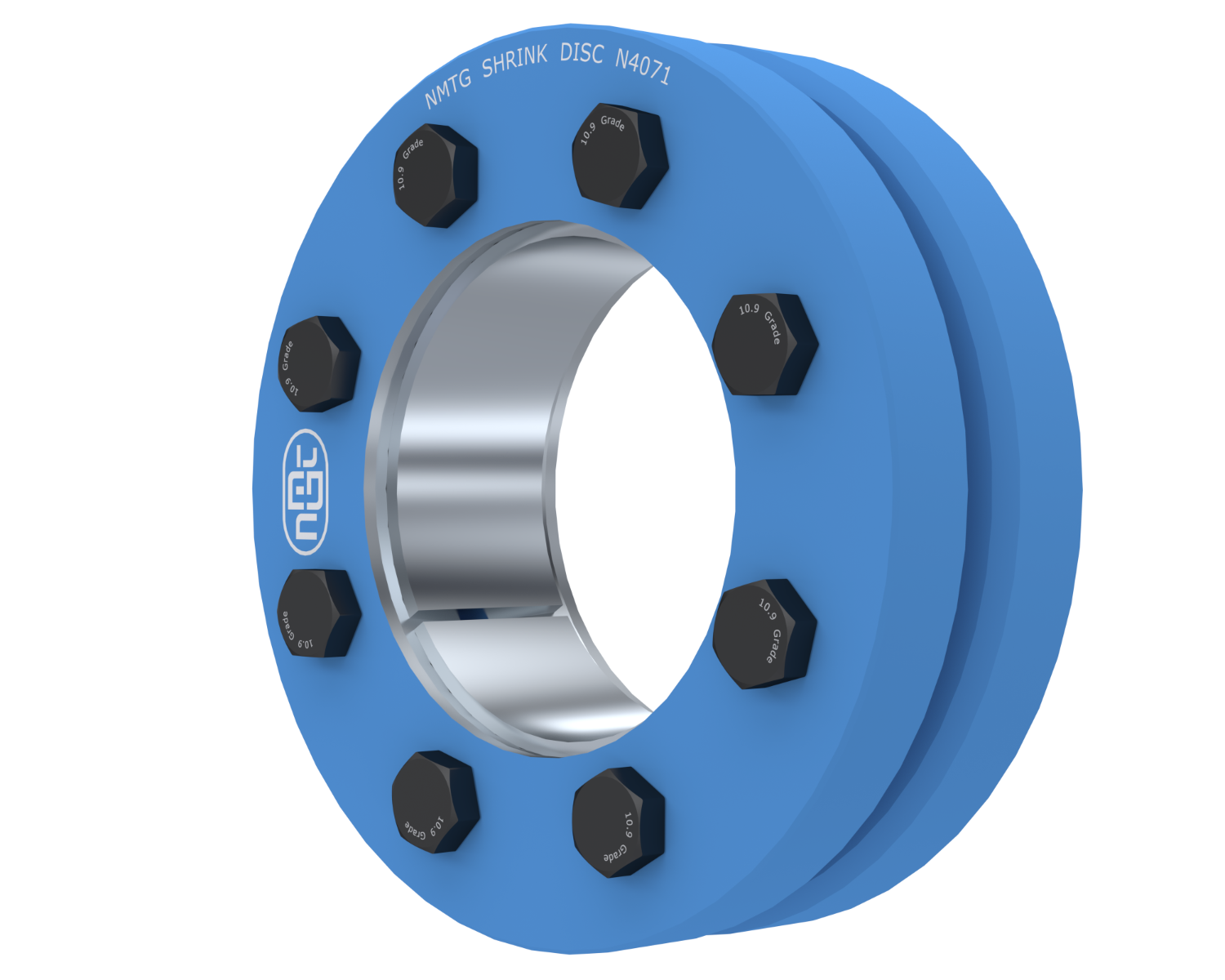

Shrink Disc N4071
Specifications
Three Part Design
Standard Range Models For High Torques
This series is available in inch size
Standard Series
For a wide range of hollow shaft OD –
30 to 620 mm
Features
Universally Applicable & Standard range Models for High torques

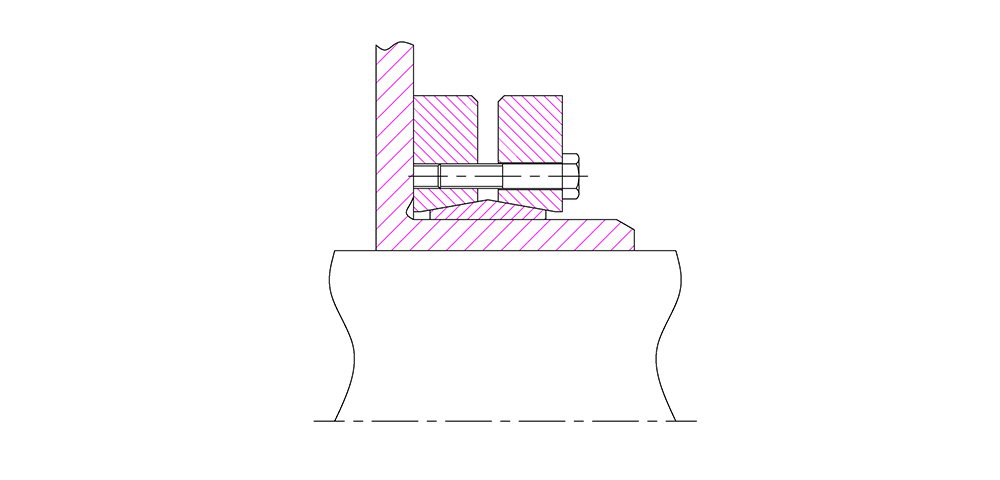

Three Part Assembly with Single Taper Design
External Locking device for Hollow shaft (Hub) -Shaft connection
Medium Torque Transmission Capacity
Centres the Hollow Shaft (Hub) to the Solid Shaft
Easy Mounting & Removal
Self-Releasing
Available in Split version also
Tolerance & Surface finish
A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm

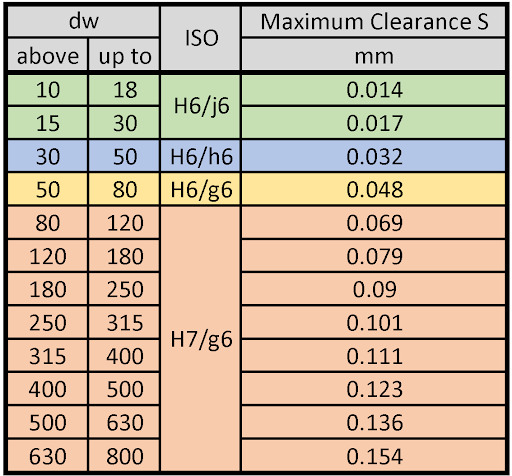

For Maximum Permissible Tolerance for Shaft & Hub Click Hear
Click Here
Datasheet
CAD Model
Installation & Removal Manual
Videos
Catalogue
