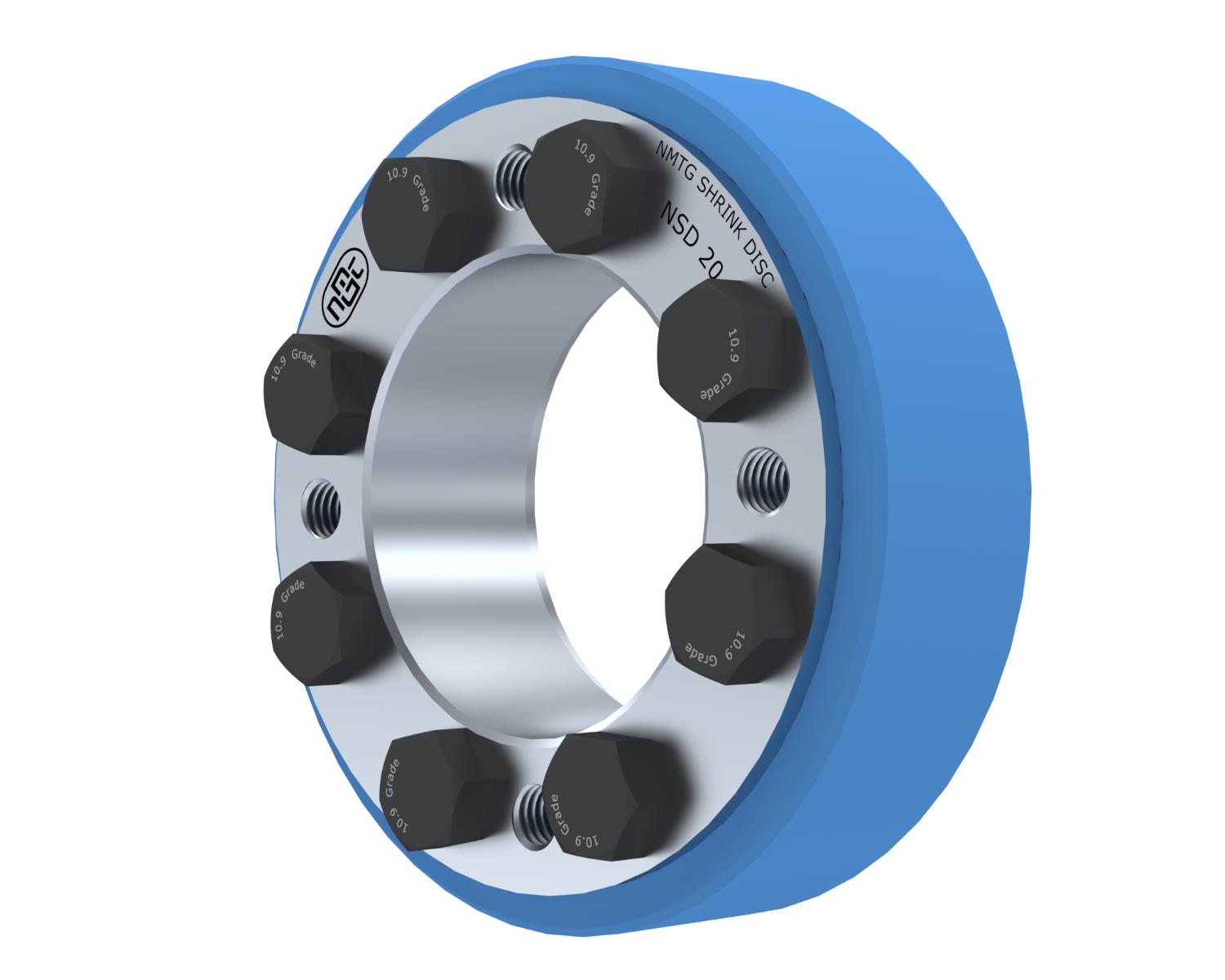

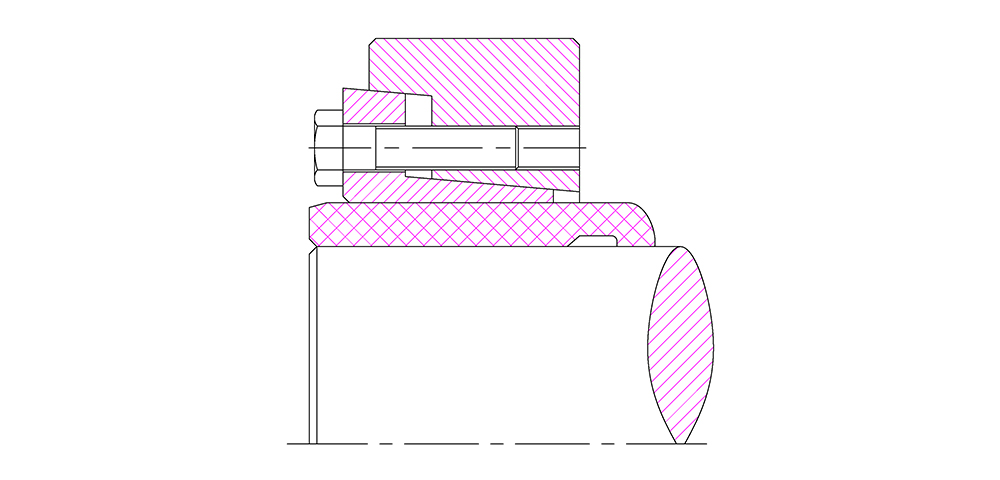

Shrink Disc NSD 20

Shrink Disc NSD 20

Specifications

  • Low Torques (10.9 Grade Bolts)
This series is available in inch size
Low torques
For a wide range of hollow shaft OD – 24 to 262 mm

Features

  • Two Part Shrink Disc
  • Double Taper Design
  • Centres the hollow shaft or hub to shaft
  • Low Torque Transmission Capacity
  • Enclosed design therefore impervious to dirt
  • Easy Mounting & Removal

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum permissible Tolerance for solid shaft: H7/h6 (Ødw < 160) , H7/g6 (Ødw ≥ 160)
  • Maximum permissible Tolerance hollow shaft OD: H7
