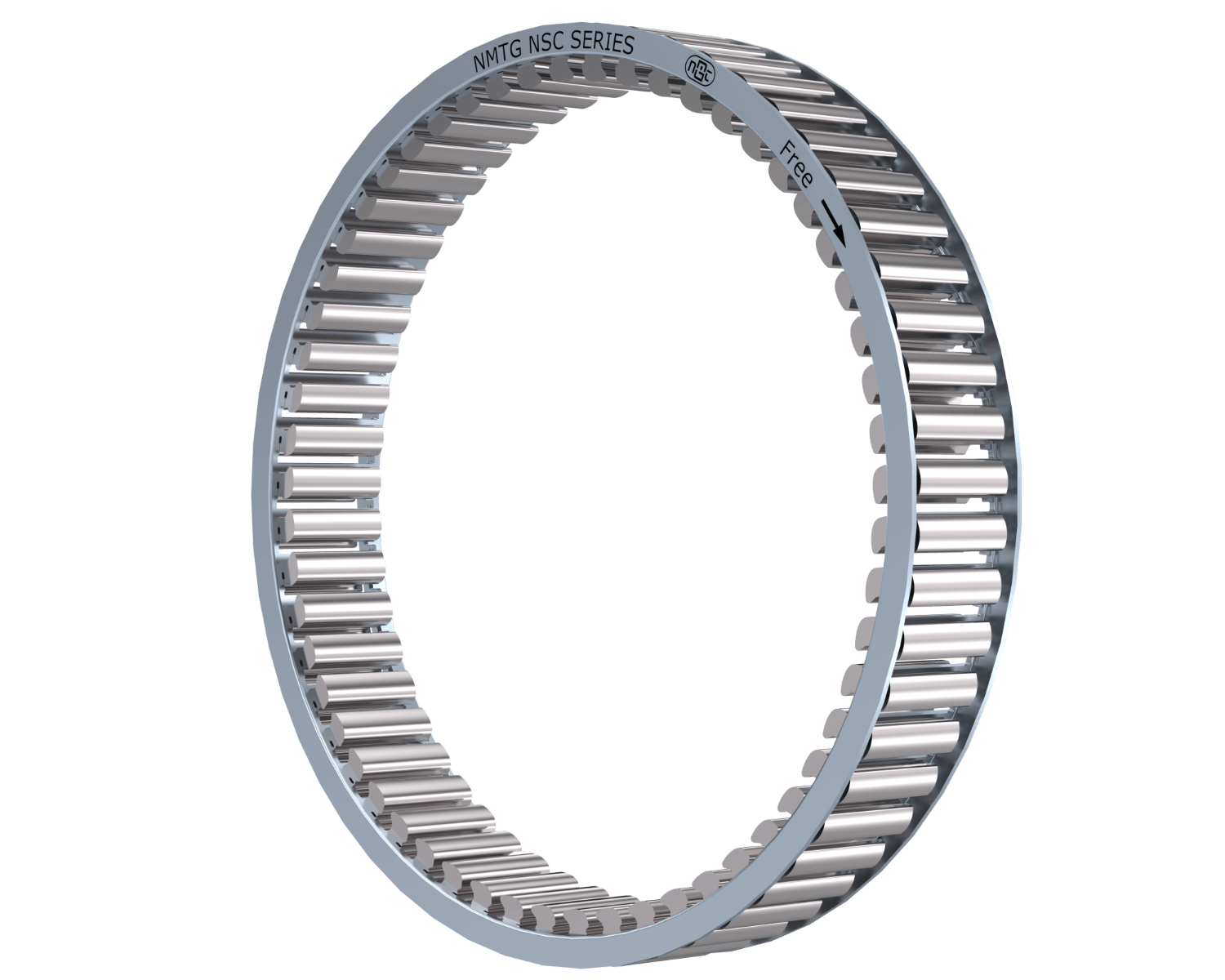

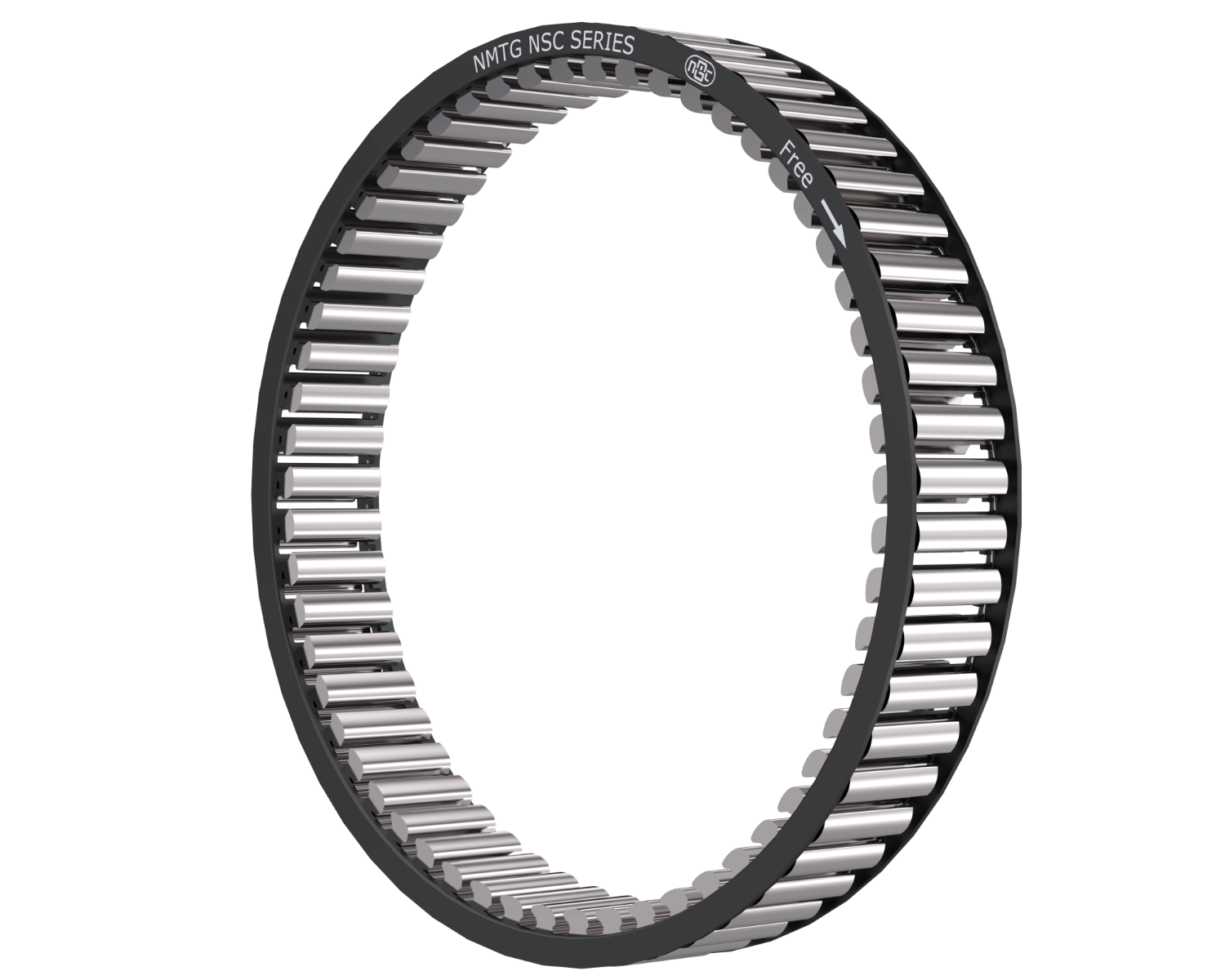

Sprag Cage Freewheels NSC

This series is used as

  1. Overrunning
  2. Backstopping

Nom. Transmitting torque: 4930 Nm.

Features

  • NSC cage freewheels are sprag type freewheels. NSC assembly to be installed between inner and outer races of customer arrangement.
  • NSC cage assembly must be installed in a design providing races, bearing support for axial & radial loads, lubrication & sealing.
  • Depending on operating data, oil or grease lubrication must be provided in mounting arrangement.
  • Inner race and outer race or housing is in customer scope. It must be case hardening steel material with hardness 60±3.
  • Case hardening depth minimum 1.5 mm must be used, surface roughness in between 1.6 μm to 6.3 μm of both races.
