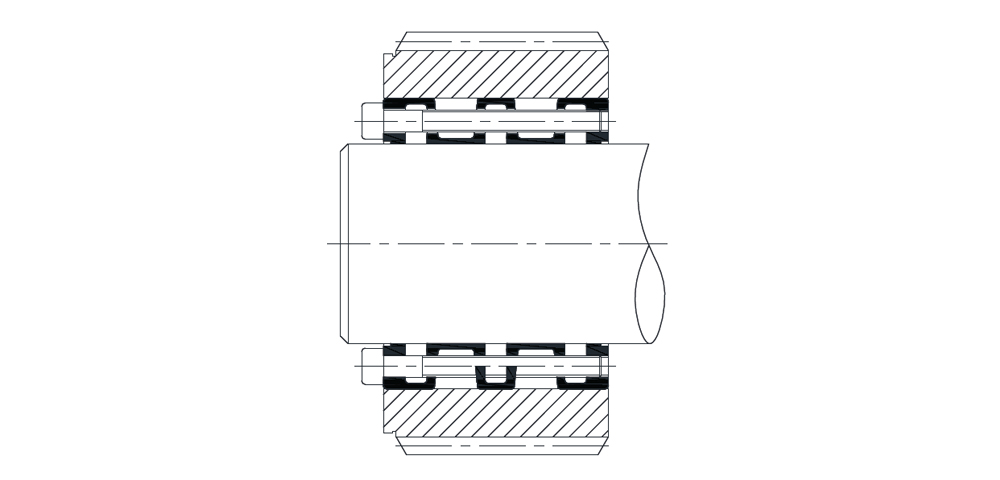

Clamping Sleeves N5011

Specifications

  • long length
  • High torque

Features

  • Single Piece Design
  • High Degree of Precision
  • Homogeneous Clamping on Shaft Hub
  • Higher Concentricity
  • Self-Centering
  • No Axial Displacement
  • Compact Design
  • Easy Installation & Removal
  • Torque Transmission Capacity: High

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h5/h6 & for Hub bore is H6/H7.
  • The Concentricity of Hub bore / Outer diameter of Clamping Sleeve must be: 0.008 mm (< 80mm) & IT4 (> 80 mm)
