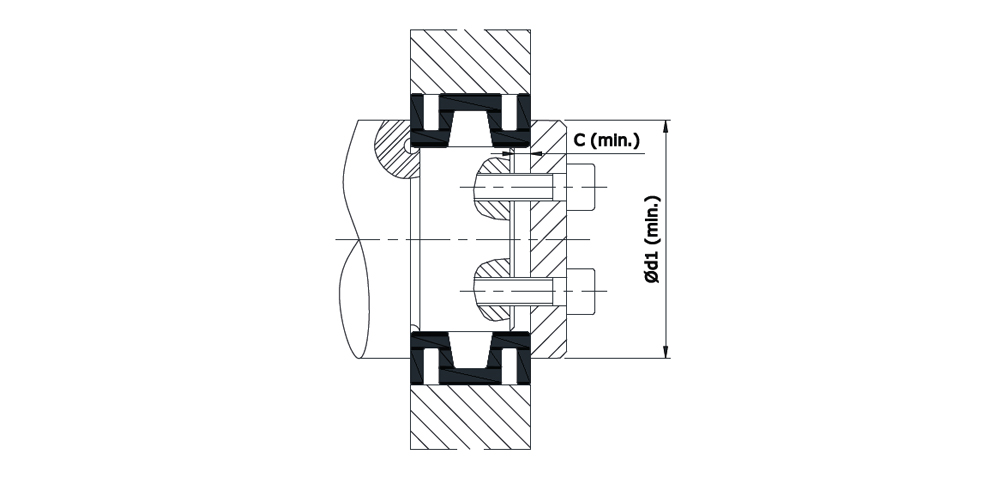

Clamping Sleeves N5013

Clamping Sleeves N5013

Specifications

  • Clamping Force From Shaft
  • Short Design
  • Medium Torque

Features

  • Single Piece Design
  • High Degree of Precision
  • Homogenous Clamping on Shaft & Hub
  • Higher Concentricity
  • Self-Centering
  • Slight Axial Displacement
  • Compact Design
  • Designed for External Clamping Initiation from shaft
  • Easy Installation & Removal
  • Torque Transmission Capacity: Medium

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h5/h6 & for Hub bore is H6/H7.
  • The Concentricity of Hub bore / Outer diameter of Clamping Sleeve must be: 0.008 mm (< 80mm) & IT4 (> 80 mm)

Special Note for Automatic mode of Operation:

  • In Automatic mode of operation, systems actual values because of different parameters.
  • So, in this condition, we recommend to verify required Force or Torque & to prevent from fatigue failure, we recommend Clamping Force = 0.75 x F max.
