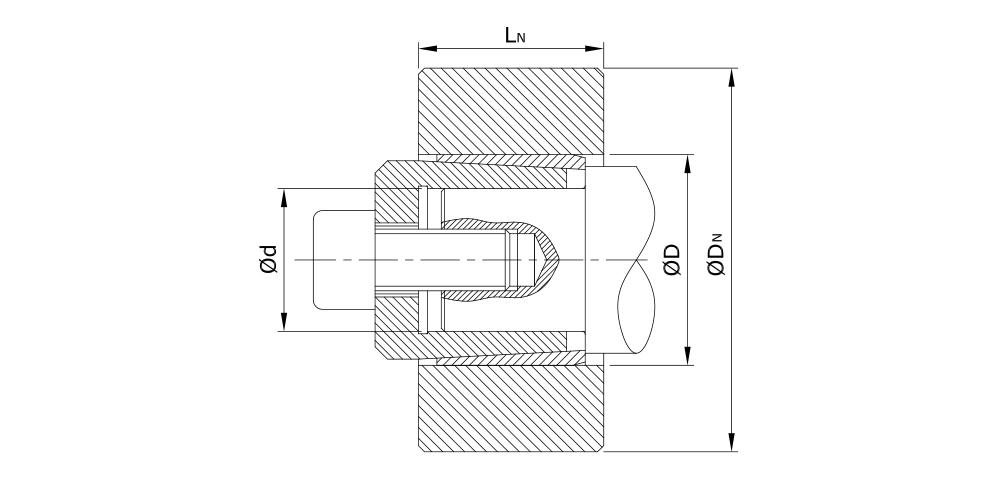

Keyless Locking Assemblies N1600 (12.9 ,10.9, 8.8 Grade)

This series is available in inch size

Features

  • Two Part Design
  • Medium Torque transmission capacity
  • Single Taper Design
  • Slight axial displacement of hub during installation
  • Self-centring
  • Self –Locking

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
