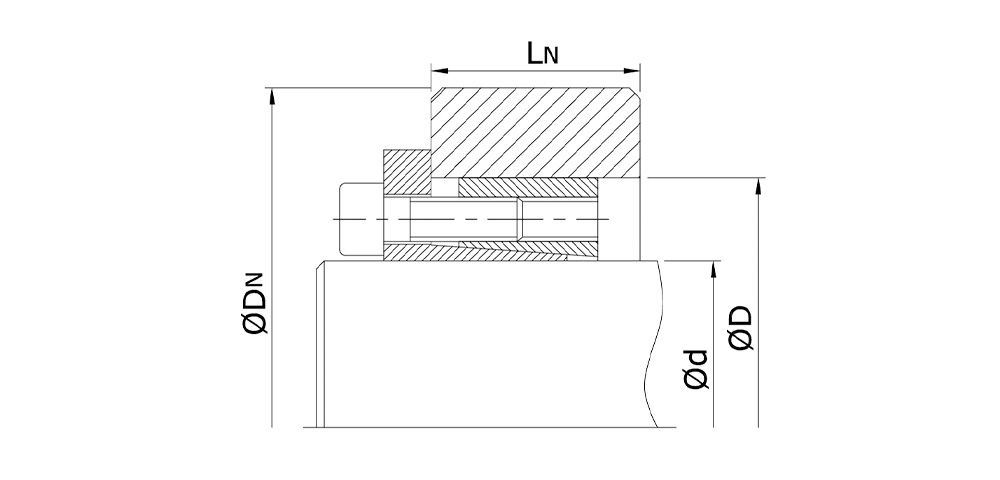

Keyless Locking Assemblies N7033

This series is available in inch size

Features

  • Two Part Model with Slotted Single taper design as well as with Flange
  • N7033 is similar to N7032, But with Flange for Axial hub Fixation
  • High Torque transmission capacity
  • Medium Bending moment capacity
  • No axial displacement of hub during installation
  • Easy Mounting & Removal
  • Self-releasing

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
