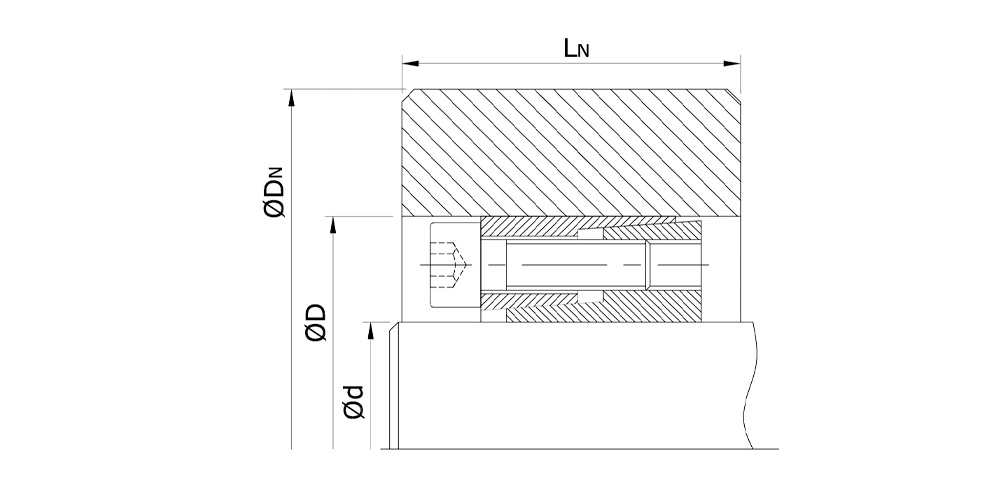

Keyless Locking Assemblies N7035

This series is available in inch size

Features

  • Two Part Model & Highly Compact Design for even Smallest shaft Diameters
  • Slight axial displacement of hub during installation
  • Medium Torque transmission capacity
  • Self-centring
  • Low Surface Pressure

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
