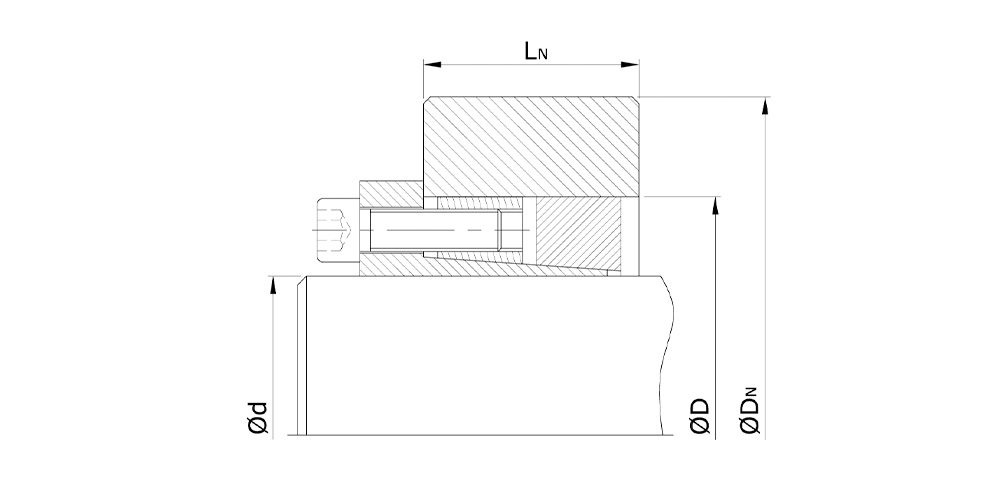

Keyless Locking Assemblies N7036

This series is available in inch size

Features

  • Three part Locking Assembly
  • Single Taper Design
  • High Torque transmission capacity
  • High Bending moment capacity
  • No axial displacement of hub during installation
  • Self-centring
  • Allows reduced hub width in conveyor pulley – lower material cost and lower machining cost.

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
