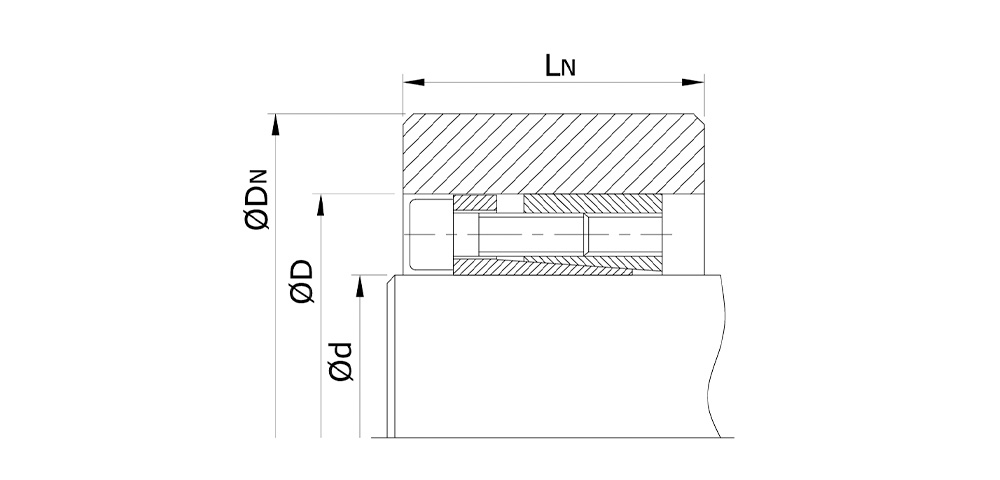

Locking Assemblies N7139

This series is available in inch size

Features

  • Two Part Model with Slotted Single taper design as well as without Flange
  • Medium Torque transmission capacity
  • Application economically advantageous
  • Slight axial displacement of hub during installation
  • Self-centring

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h8 & for Hub bore is H8.
