Locking Assemblies Stainless Steel N7012 SS

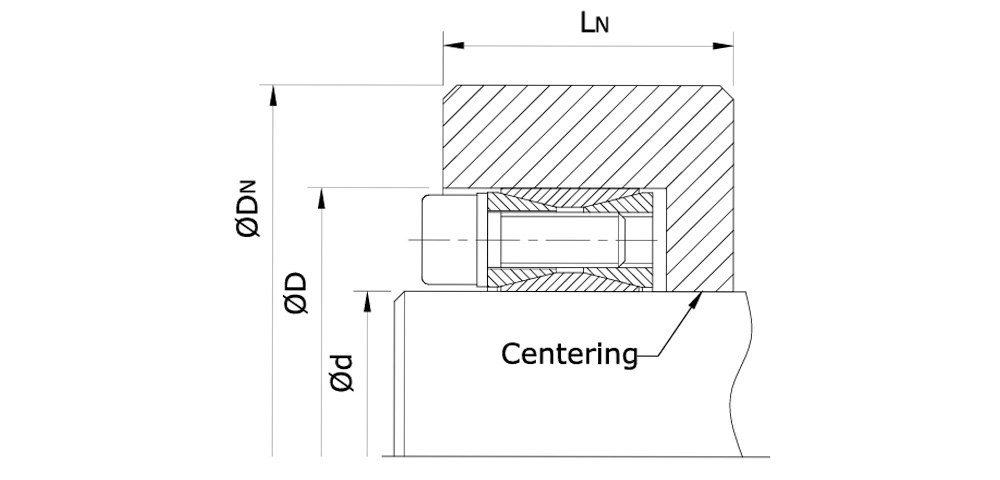

Locking Assembly N7012-ss (STAINLESS STEEL)

Specifications

  • N7012 SS Easy To Detach
  • Compact Design
This series is available in inch size

Features

  • Slimmest Design for limited Spaces as well as maximum forces and moments
  • Four part Locking Assembly
  • Double Taper Design
  • Medium Torque transmission capacity
  • Medium Bending moment capacity
  • No axial displacement of hub during installation
  • Not self-centring
  • Self-releasing
  • Economically beneficial for conveyor application

Tolerance & Surface finish

  • A good Surface finish by Machine tool is sufficient. Maximum allowable Surface finish R ≤ 3.2μm
  • Maximum Permissible Tolerance for Shaft is h11 & for Hub bore is H11.
