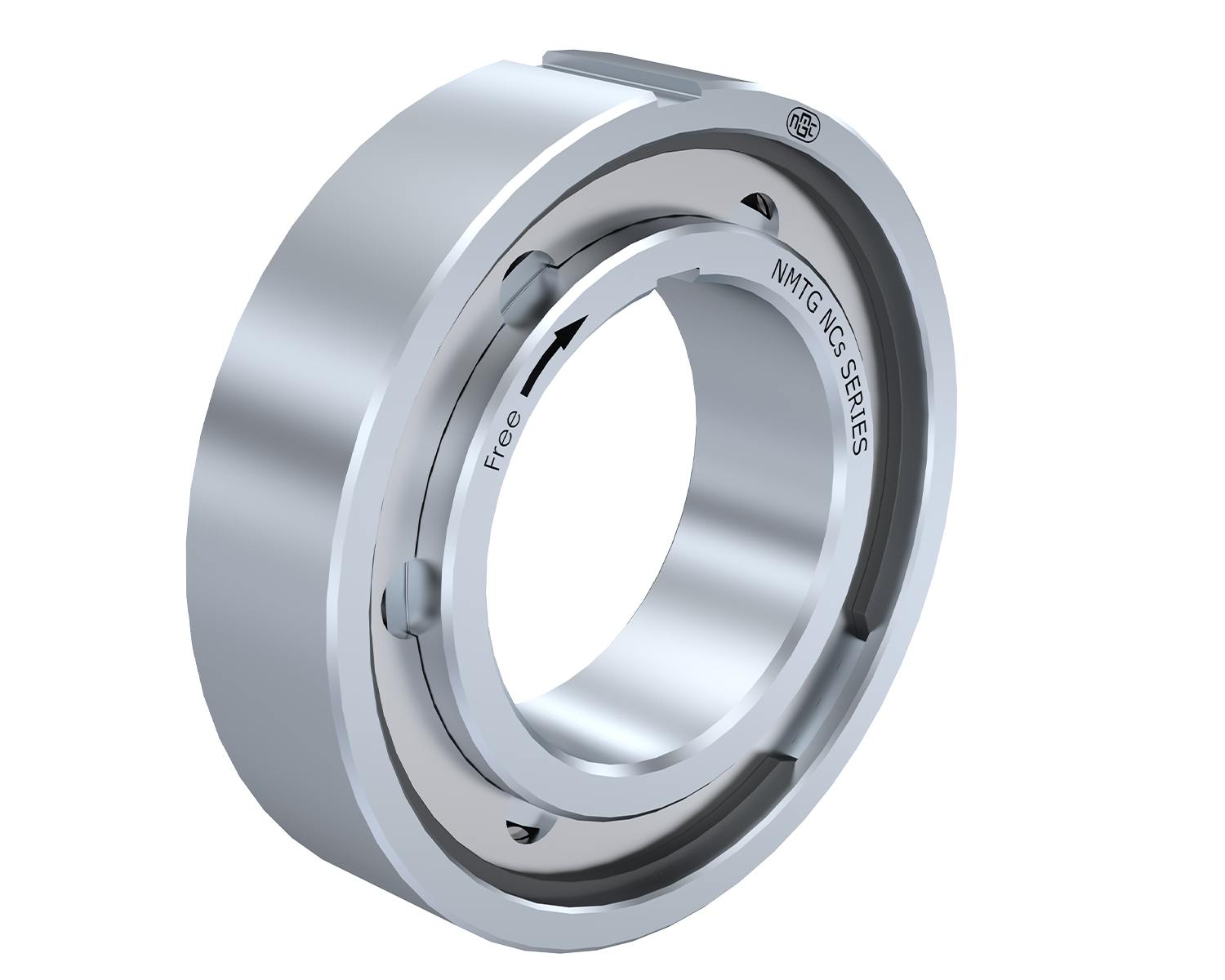

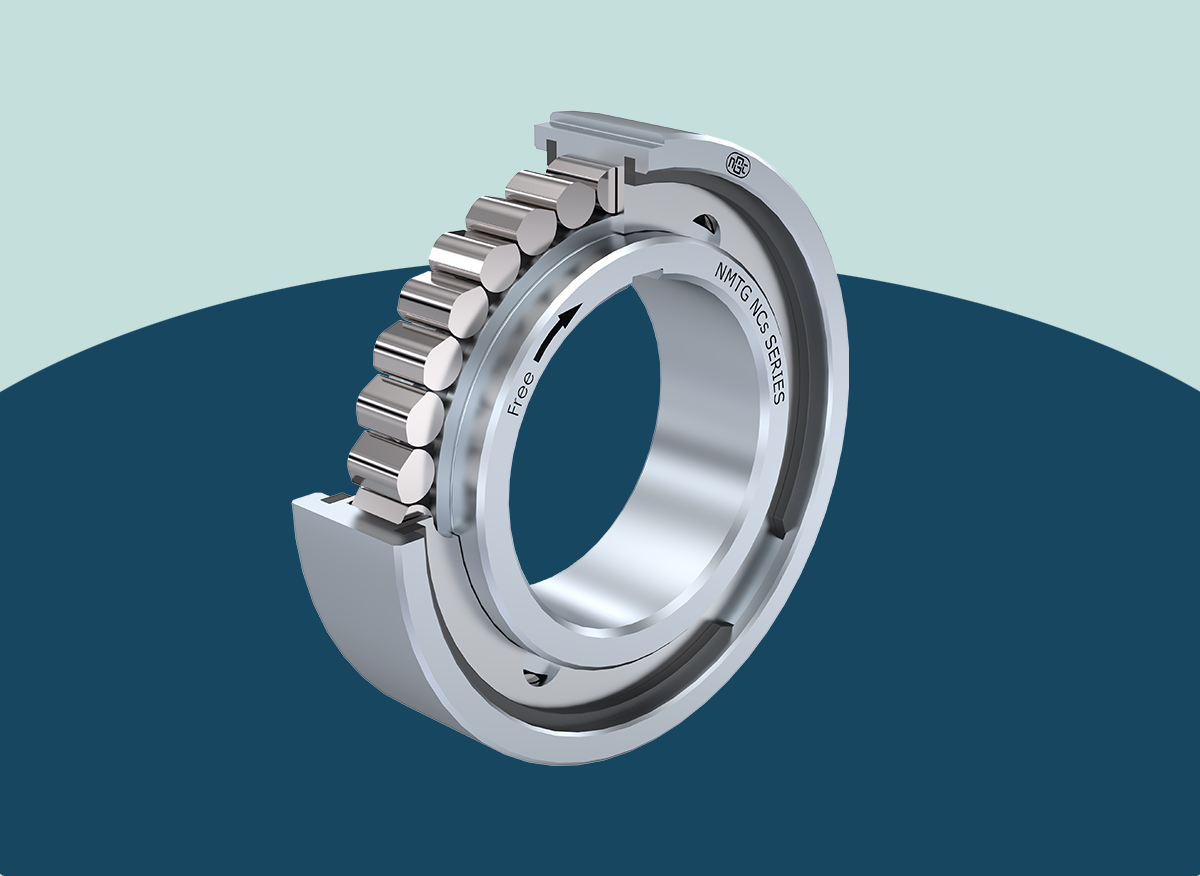

Sprag Type Freewheel one-way Clutches NCs

    Internal Freewheel one-way clutches

    This Series is use as

    • Backstopping

    Bore range: up to 80 mm.

    Nom. Transmitting torque: 1400 Nm.

Features

  • This type of Clutch is designed for Press fit Installation into the Housing through Outer race.
  • Internal diameter of Housing should be H7.
  • Mount (Install) Clutch with bearing to avoid Radial force, because this Clutch does not have any Bearing support.
  • Keyways should be made in outer surface of Clutch for proper Installation.
  • Make sure that Housing has enough Strength to withstand pressure required for the fitting Installation of Clutch.
  • The Freewheel One-way Clutch Requires Oil Lubrication in Housing arrangement. Lubrication & Sealing must be provide in Installation.
